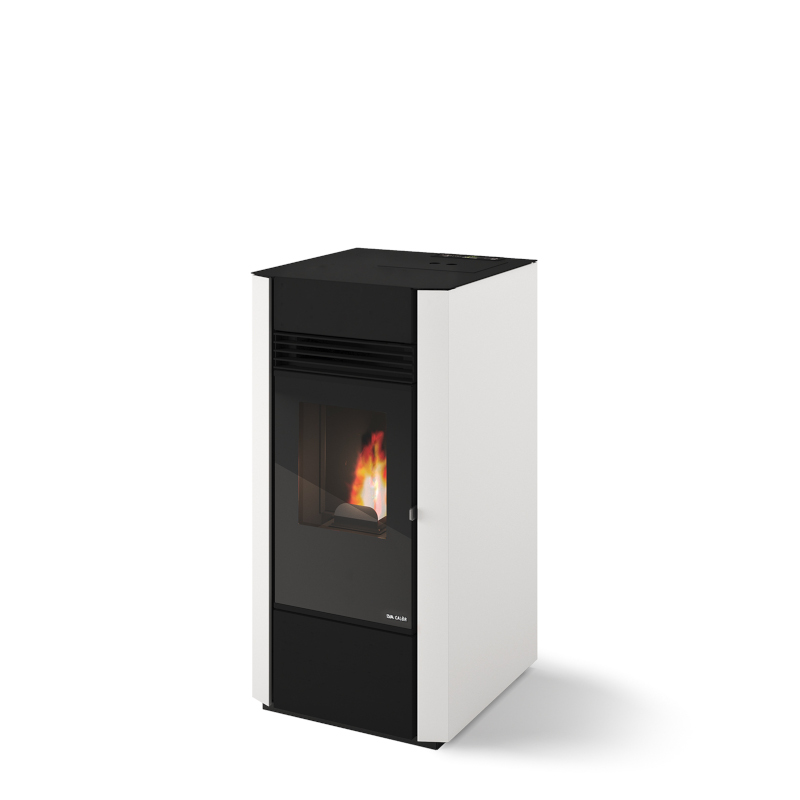

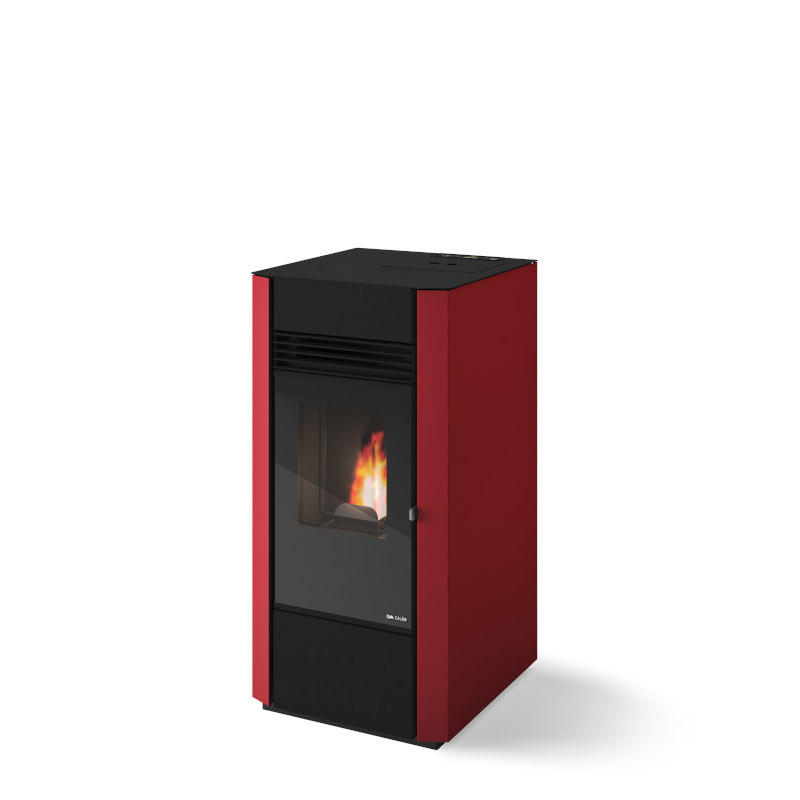

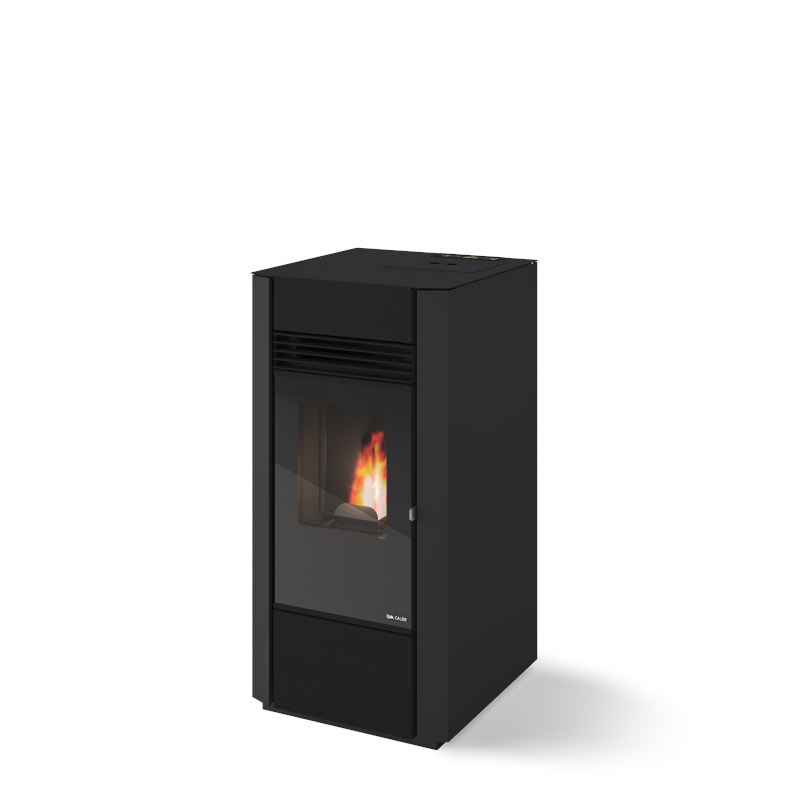

5 Star ducted pellet stove EVA CALOR IRMA PLUS

Description

5 Star ducted pellet stove EVA CALOR IRMA PLUS

INDEPENDENT DUCTING

Door front in black
silk-screened glass Forced
ventilation 5 operating
powers Display with 6-language
menu Removable ash drawer for ash
recovery Removable
handle PREMIUM ducting (double ventilation)
Upper-rear
smoke outlet Safety
thermostat External thermostat
predisposition Safety
pressure switch Chronothermostat



PREMIUM

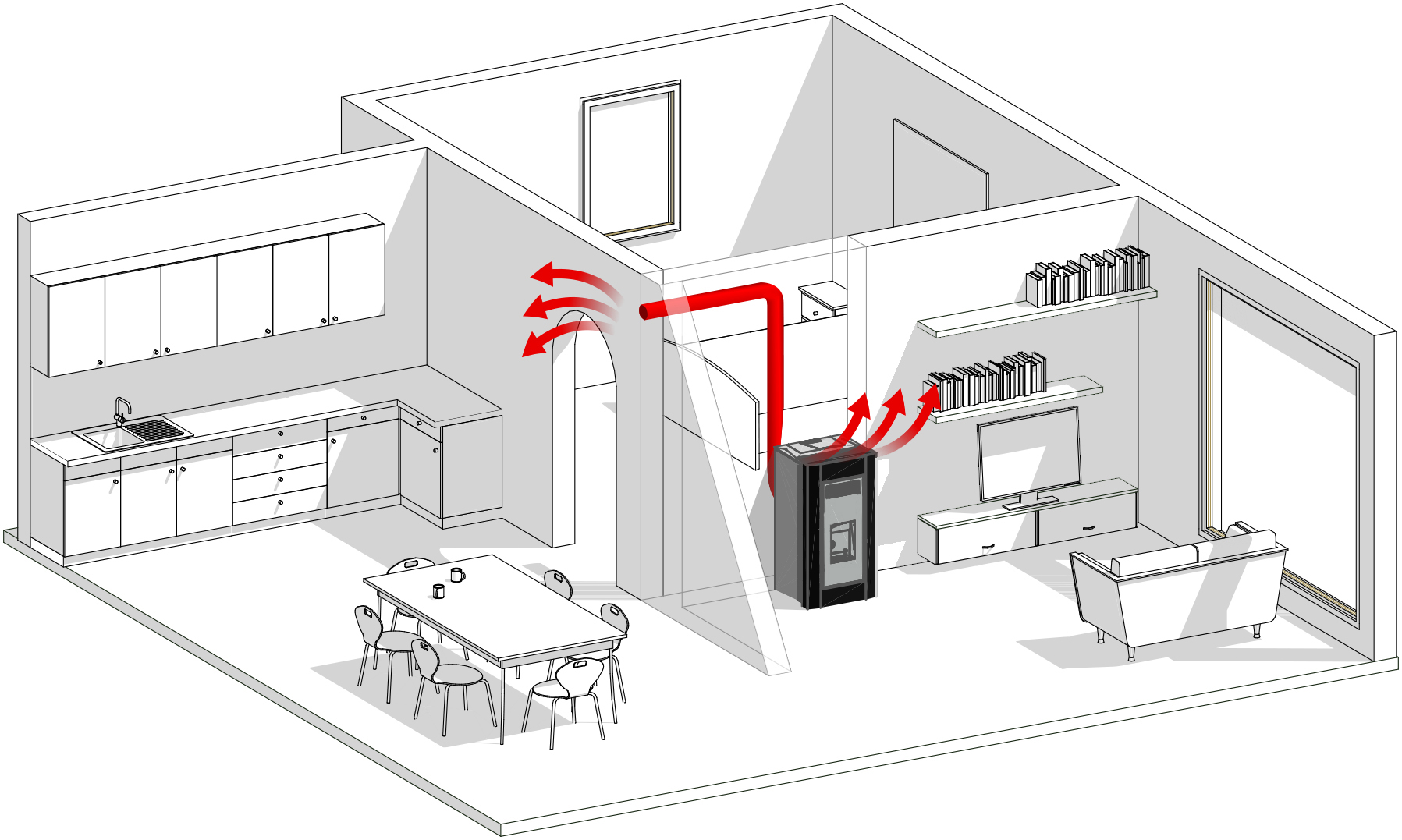

With double fan to bring heat up to 5 meters away (using an insulated pipe) and to heat rooms up to 120 m3. Standard in the models Cloe, Beatrice, Zoe, Ines, Gemma, Irma, Andrea, Tommy, Evelyn.





CERTIFICATION

Strictly tested and certified product.



ECODESIGN 2022

This product falls under the ECO DESIGN 2022 criteria which establish ecodesign requirements, calculation and measurement methods for the purpose of reducing emissions into the atmosphere.



ENVIRONMENTAL CLASSIFICATION

This product meets the most stringent environmental regulations and has been awarded 5 stars.



THERMAL ACCOUNT 2.0

This product benefits from a contribution up to:
€ 1496,00.



SHU

The SHU symbol indicates that the stove is equipped with a removable handle. A safety precaution to prevent accidental and/or unintentional opening of the fire door.



WI-FI MODULE (OPTIONAL)

Remote control module, which can also be installed after purchase.







Power burned: max 9.5 kW – min 2.8 kW Power output in heating: max 8.0 kW – min 2.5 kW

Energy efficiency class: A+

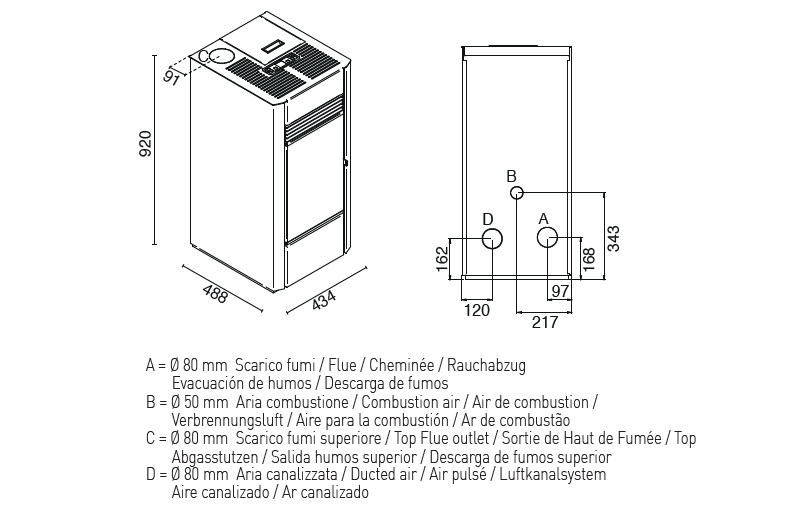

Efficiency: Pmax 88.0% – Pmin 90.0% CO value with 13% O2 (%): Pmax 0.010% – Pmin 0.013% Pellet hourly consumption: max 2.0 kg/h – min 0.6 kg/h Tank capacity: 13.5 kg Heatable room size: 140 – 200 mc Minimum distances from flammable walls: side: 25 cm – back: 10 cm – front: 100 cm Power supply: 230V – 50 Hz Nominal electrical power: 320 W Dimensions: L 45.9 x D 51.3 x H 90.7 cm Weight: 60 kg Steel chamber Stainless steel brazier Complies with standards: EN14785 – BImSchV II – 15a B-VG – LRV/VKF Ash drawer: removable for ash recovery Ducted stove: Premium (double ventilation) Smoke outlet: upper – rear Remote control: optional WI-FI module for remote control: optional Protection platform: Optional
