Description

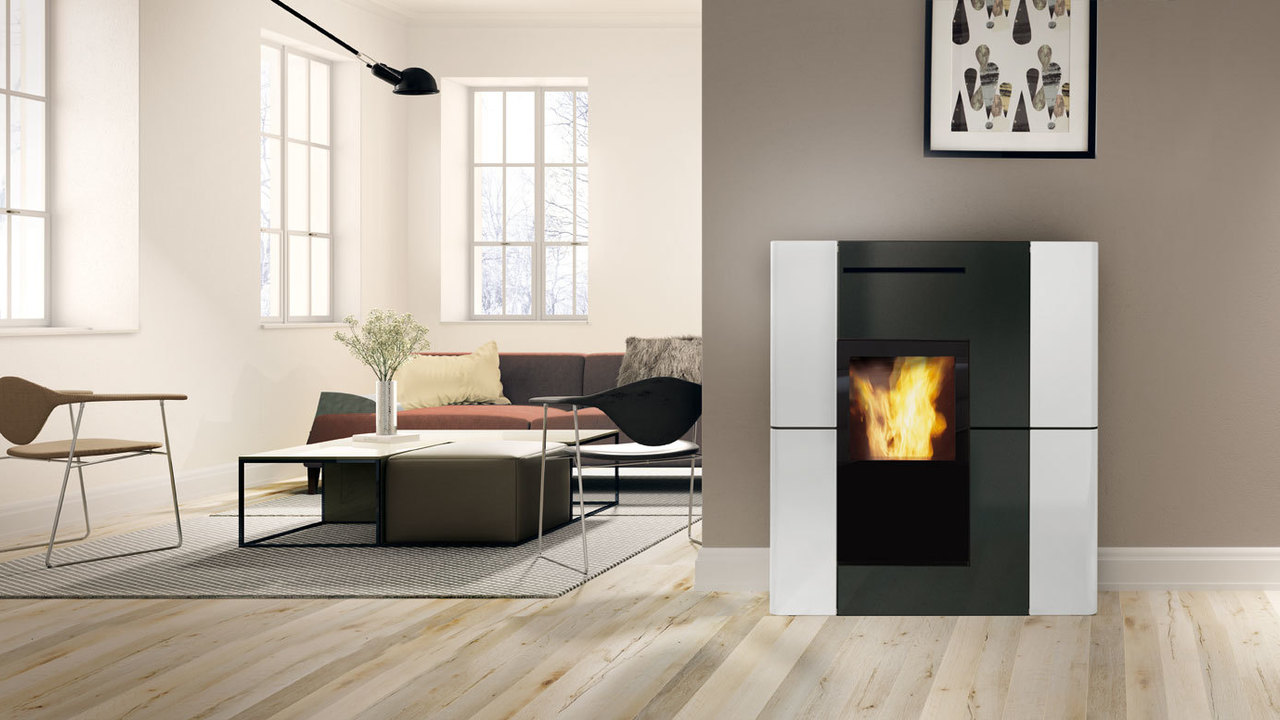

5 Star Pellet Boiler Stove EDILKAMIN BLADE2 H 18 – 22 UP CERAMICA
Pellet boiler stoves with a particularly compact design, only 39 cm deep, available in a wide range of models. They power radiators and radiant floor panels throughout the house, they can be combined with solar panels and/or a gas boiler.
They also produce hot air to heat the installation room (which can be deactivated).
• Steel
hearth• Ceramic
glow plug• Smoke outlet Ø 8 cm: upper, female
• Systems configurable from the display, with terminals for external
probes• Daily/weekly programming• Front hot air ventilation (modular and deactivated)
• Display on the
top
• Pellet
reserve light• The Mind system with integrated
WI-FI• Leonardo System Available models:
• Bordeaux ceramic
• Matt white ceramic
• Beige Ceramic
Optional:
• Anti-condensation
valve• Rear male smoke outlet kit
Technical | Blade2 H 18 Up min/max |
Blade2 H 22 Up min/max |
|
width | Cm | 106 | 106 |
depth | Cm | 39 | 39 |
height | Cm | 122 | 122 |
Usable | Kw | 5.4/19.2 | 5.4/22.8 |
Useful power for water | Kw | 15.5 | 19 |
yield | % | 91.7 | 91.6 |
Fuel | kg/h | 1.2/4.4 | 1.2/5.2 |
Tank | Kg | 30 | 30 |
autonomy | h | 7/25 | 6/25 |
Water | l | 20 | 20 |
Ø smoke | Cm | 8 |
8 |
Ø air | Cm | 5 |
5 |
total weight | Kg | 307 | 307 |
heatable volume (depending on the type of system) | m³ | 500 | 595 |
Environmental classification DM 186
