5 Star Pellet Stove MONTEGRAPPA MP 13 AUP GASSA M

Description

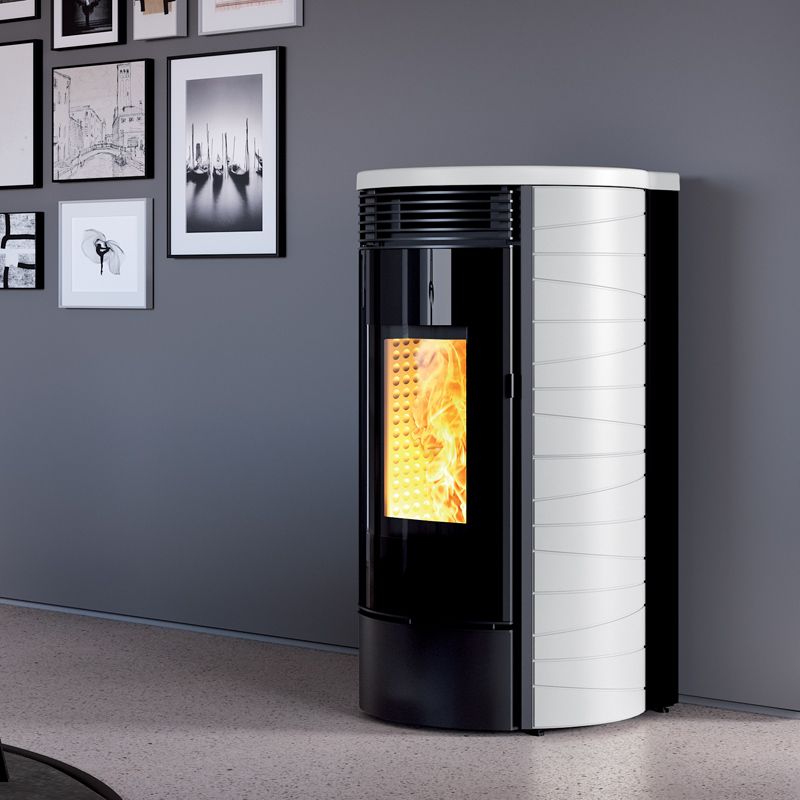

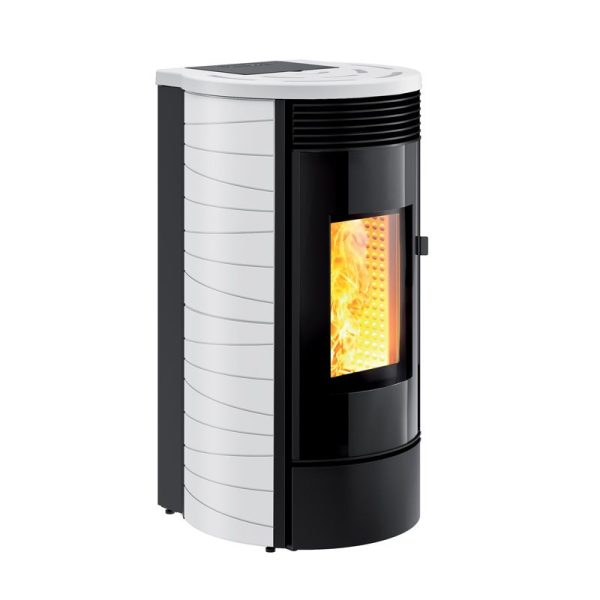

5 Star Pellet Stove MONTEGRAPPA MP 13 AUP GASSA M

Majolica cladding and top, round painted steel structure. The exterior door features large curved black painted glass. Gassa M is available in five colors: white, gray, black, cashmere and sugar.

Automatic burner cleaning system Ash outflow hopper Door with wonder-effect glass Control panel equipped with backlit graphic display with digital icons TOUCH SCREEN Intuitive software with setting of both the room temperature and the maximum operating power. Equipped with STAND BY function to maintain the desired comfort of the indoor environment Programmable thermostat with settable temperature and with the possibility of choosing the operating power of each programmed time slot Gear motor Electronic board with the possibility of managing external thermostats Deep cylindrical burner with holes for the air inlet for the second combustion Ignition pipe inserted inside the burner, always guarantees perfect ignition of the product TUTOR efficient combustion control system Removable cast iron firebox backrest Flue gas circuit behind the combustion chamber Steel heat exchanger for heating the ambient air Probe to detect the temperature of the environment Safety thermostat Safety pressure gauge Tangential fan of the ambient air Large removable ash drawer Adjustable non-slip feet for correct Leveling Wi-Fi Module (optional)

MP 13 AUP GASSA M

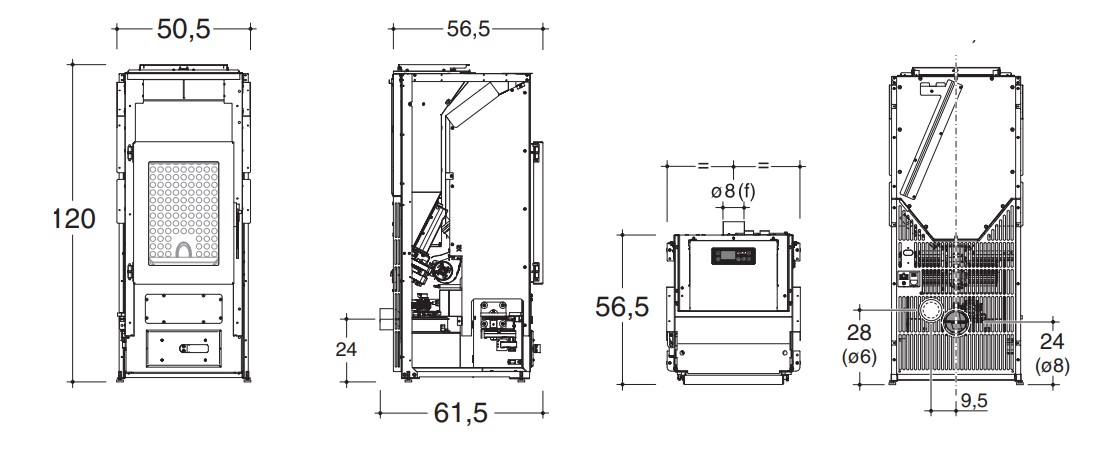

body size + cover: L 65 x P 65 x H 120 cm

Technical data

power

USD

consumption

Mass

gas temperature

capacity

outlet pipe

surface

Quality class (D.M. 186 – 7/11/2017)
overall heat output (at the hearth)	13.4		Kw
Certified	4.1 – 11.8		Kw
CO measured (at 13% oxygen)	0.0047		%
Yield (η)	88.0		%
Primary Particulate Matter (PP) at 13% oxygen	11		mg/Nm³
COT (at 13% oxygen)	5		mg/Nm³
Fuel	0.99 – 2.87		kg/h
flow rate of fumes	5.5 – 8.0		g/s
Flue	120 – 215		°C
draught (vacuum at the chimney)	12		Pa
Tank	30		Kg
autonomy	30 – 10		h
Smoke	Ø 80		Mm
air inlet for combustion	Ø 60		Mm
Heatable	135		*sqm
net weight	119		Kg
Weight with packaging	131		Kg
* with the conditions shown in the General Catalogue
