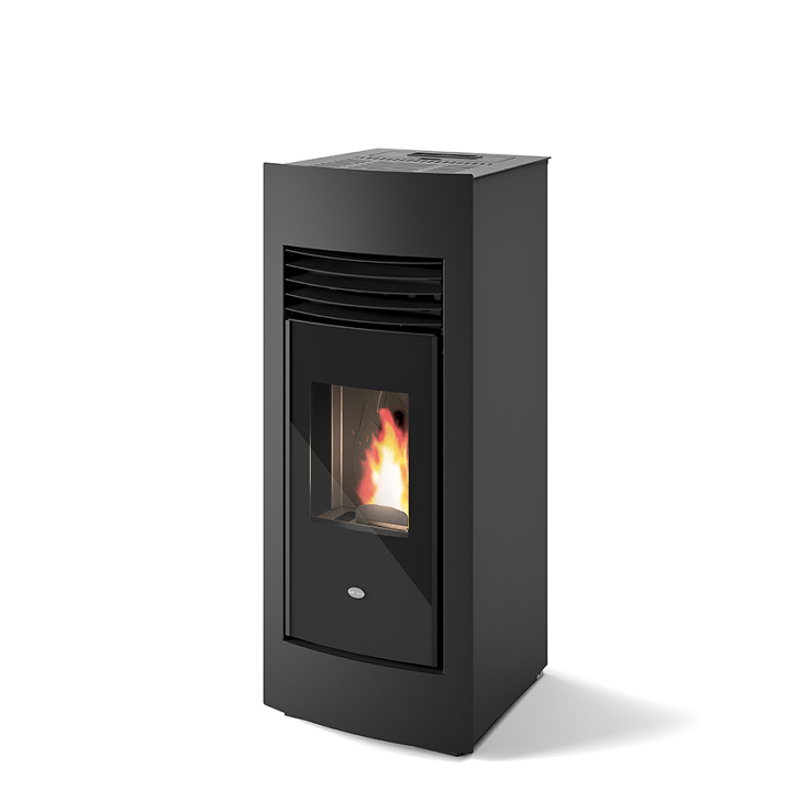

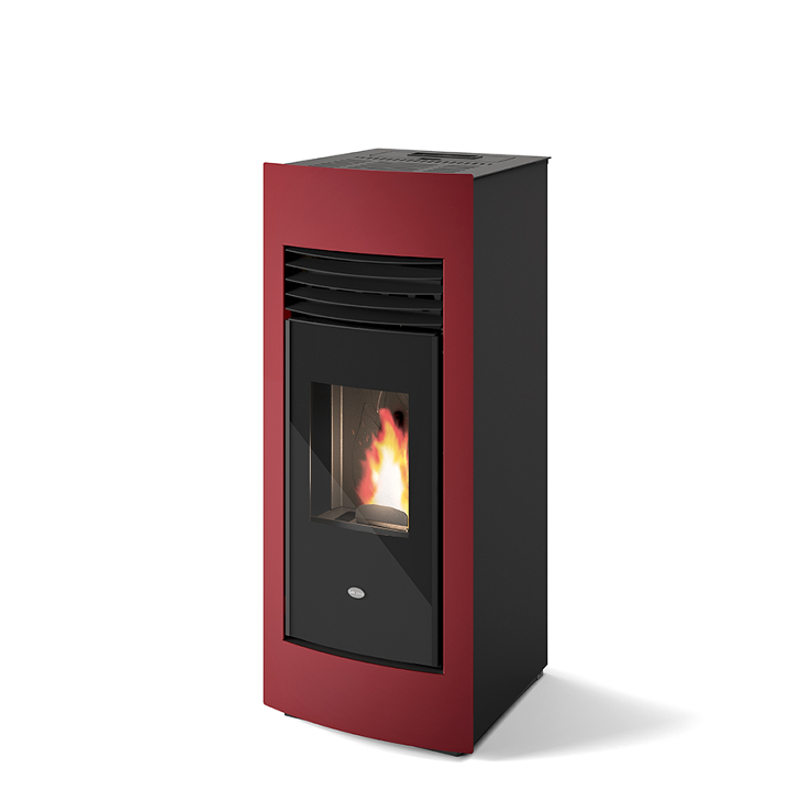

EVA CALOR pellet stove model LETIZIA DOUBLE DUCTING 15.4 kW

Description

EVA CALOR pellet stove model LETIZIA DOUBLE DUCTING 15.4 kW



Cladding with calendered
steel front Curved black
screen-printed glass front Forced
ventilation 5 operating
powers Display with 6-language
menu Cast iron
combustion chamber Removable ash drawer for ash
recovery Removable
handle Ducting with two independent fans on two outlets
Safety
thermostat External thermostat
predisposition Safety
pressure switch Chronothermostat





CERTIFICATION

Strictly tested and certified product.



ECODESIGN 2022

This product falls under the ECO DESIGN 2022 criteria which establish ecodesign requirements, calculation and measurement methods for the purpose of reducing emissions into the atmosphere.



ENVIRONMENTAL CLASSIFICATION

This product meets the most stringent environmental regulations and has been awarded 5 stars.



THERMAL ACCOUNT 2.0

This product benefits from a contribution up to:
€ 1910,00.



SHU

The SHU symbol indicates that the stove is equipped with a removable handle. A safety precaution to prevent accidental and/or unintentional opening of the fire door.



WI-FI MODULE (OPTIONAL)

Remote control module, which can also be installed after purchase.











SPECIFICATIONS

Power burned: max 15.4 kW – min 4.2 kW Power output: max 14.0 kW – min 4.0 kW

Energy efficiency class: A+
Efficiency: Pmax 88.4% – Pmin 95.0% CO value with 13% O2 (%): Pmax 0.014% – Pmin 0.023% Pellet hourly consumption: max 3.4 kg/h – min 0.9 kg/h Tank capacity: 16 kg Heatable room size: 240 – 320 mc

Minimum distances to flammable walls: side: 30 cm – back: 20 cm – front: 100 cm
Power supply voltage/Freq.: 230V – 50 Hz
Nominal electrical power: 340 W Dimensions: L 48.0 x D 54.5 x H 114.8 cm Weight: 117 kg Cast iron combustion chamber

Stainless steel bowl
Complies with standards: EN14785 – BImSchV II – 15a B-VG – LRV/VKF
Ash drawer: Removable for ash recovery
Ducting with two independent fans on two outlets
Smoke Outlet: Rear
Remote control: Optional
WI-FI module for remote control: Optional
Protective footboard: Optional



SHEET
