3305,00€ – 3719,00€
All products are shipped by express courier.
Shipping is free for all of Italy with the exception of islands and disadvantaged areas.
For disadvantaged islands and postal codes, you can request a quote on shipping costs by writing to vendita@xodostore.com

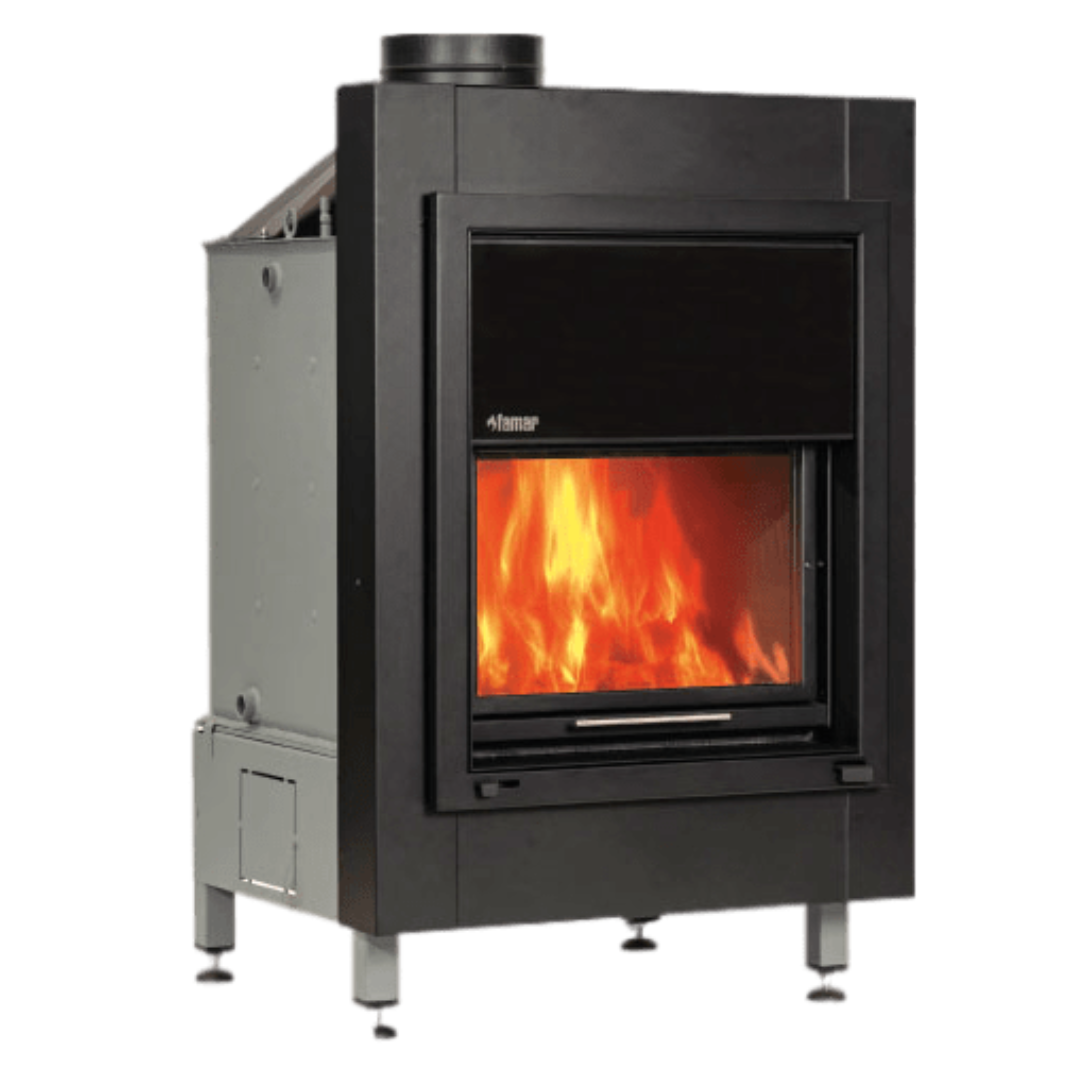

To date, the ECO SV fireplace boiler is the only wood-burning fireplace boiler capable of synergistically exploiting the three modes of heat transmission: radiation, conduction and convection, thanks to the particular shape of the exchanger (Famar patent) capable of recovering the heat contained in the fumes to the maximum, achieving unparalleled thermal efficiency.
The use of physical principles at the service of design studies and fluid dynamics calculations make the Eco SV fireplace boiler a real jewel in heating from renewable energy sources, guaranteeing high and constant yields over time, clean fumes and a cleaner environment at all times with emissions of fine particles and residues below the minimum values required by current regulations.
1 – Copper coil for domestic water production
2 – Fume emissions with very low carbon monoxide values (0.0645%)
3 – Famar patented heat exchanger
4 – Combustion air inlet
5 – High density vermiculite bottom with special holes to allow air flow
6 – Duct for the preheating of secondary and tertiary air located below the combustion chamber
7 – Bottom with refractory bricks resistant to 1420 °C
8 – Cast iron side
9 – Lever for adjusting the primary combustion air flow
10 – Ornamental frame
11 – Glass anti-smoke oxidizing air film
The exclusivity and capacity of the ECO SV heat exchanger brilliantly avoids the typical problem of all water boilers that exploit woody biomass: the deposit of combustion residues (e.g. creosote, pitch and others) on cold surfaces. The exchanger, having the fins welded on the contact surface and therefore fixed and not removable, makes the structure a dry chamber (patented system) which becomes incandescent when the fumes pass, exceeding the lysis temperature of the unburned smoke particles and distillates, burning them further. These combustion deposits produce additional energy when burned and turn into ash that can be easily removed. Throughout the life of the boiler, the efficiency remains constant , from the first to the last day of use, because there is no accumulation of creosote or unburnt deposits in the exchanger, with the advantage of being able to burn any type of wood or biomass without ever becoming clogged.
In the ECO SV fireplace boiler, the fumes are conveyed into the heat exchanger (patented system) consisting of suitably sized honeycomb ducts. In these sections, the sucked fumes are forced to make vortices, exchanging energy not only by contact but also by convection (adduction).
The exchanger, due to its particular shape and design, heats up to incandescence, exceeding the lysis temperature of the smoke particles with the result of releasing additional energy that is transferred to the water circulating in the cavity, lowering the temperature of the fumes leaving the flue as well as acting as an abatement cyclone.
Large and panoramic combustion chamber with easy access even for large wood. The retractable vertical door is easy to clean with the possibility of opening also laterally. A film of air on the inner surface of the door prevents the glass from smoking, ensuring optimal aesthetics. Equipped with a convenient compartment for containing accessories. Fireplace boiler machined with Fe 360 pickled sheet metal and finished with anti-corrosion paints.
| Power | 20 kW, 28 kW |
|---|---|
