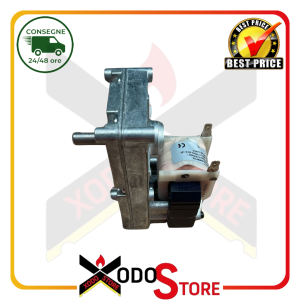

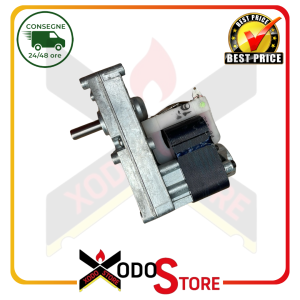

Mellor gearmotor for pellet stoves (Cod: FB1137). Speed: 4.75 rpm, Shaft diameter: 8.5 mm (Rif.Int. 2009)

Description

Mellor gearmotor for pellet stoves (Cod: FB1137). Speed: 4.75 rpm, Shaft diameter: 8.5 mm (Rif.Int. 2009)

DESCRIPTION:

Reference FB1137

Suitable for applications where low speed and high torque are required, the FB1137 gearmotor is specifically designed to be used as a rotor to power pellet stoves. T3 series, nominal torque 27Nm, absorption 41Watt, speed 4.75rpm, clockwise rotation, shaft diameter 8.5mm, 38mm reed valve pack, power supply 220 V AC – 50/60Hz.

INTERCHANGE THEM WITH THE FOLLOWING MODELS:

MELLOR : FB1079, FB1225 SPG : ISG3230D071 KENTA : K9117156

MOUNT ON STOVES:

– ARCE ref. 1611909738 – 1611909737 mod. Cicle idro XL -DAL ZOTTO ( 002271013 ): DZ14, DZ20, DZ30, Jole Idro, Malika Idro, Marta Idro, Veronica Idro – ECOTECK ref. 160-55-001N – EMAFLAM ref. R2600510 mod. Alma – Citra – Diama – Hema – Sandro – NORDICA EXTRAFLAME ref. 2271013 – 002271013 mod. Diadema – Giordana – Iside idro – Liliana – Lucrezia – LP14 – LP20 – LP30 – Melinda idro – Melinda idro steel – RAVELLI ref. 160-55-001N mod. HRV160 12 – HRV135 ver.2 – HRV170 – HR evo 18 – HR160 – Slender – HRV160 14 – HR evo18 Touch – HR evo24 Touch – HRV200 – Tank 2014 – HRV160 Touch – HR evo Slim Cleaner – turbulators – HR evo1824 Plus (auger) -OPERA Amleto Idro, Rigoletto Idro, Traviata Idro

USING THE FB 1137 GEARMOTOR

The Mellor 4.75 rpm gearmotors Code FB1137 proposed by Xodostore – Shaft ø 8.5 mm – 38 mm lamellar pack and installed on pellet appliances have the task of rotating the auger in the pellet tank transporting it to the crucible to be burned, or the increasingly used automatic brazier cleaning systems present on many biomass stoves and boilers. The auger is positioned in such a way as to pick up the pellets from the bottom of the tank and then transport them to the top of the stove Once at the top of the auger, the pellets naturally fall into a chute that will accompany them inside the burner.

MAIN FEATURES OF MELLOR GEARED MOTORS:
-Nominal torque: from 2.5 up to 35Nm, depending on the reduction
ratio-Available speed: from 0.3 to 11rpm-Typical
applications: all those that require bidirectional rotations with low and precise speed, high torque and very
low noise.
Designed for pellet stove, boiler and fireplace boiler applications
