MONTEGRAPPA hermetic ducted pellet stove model MX 16 E CUMA M

Description

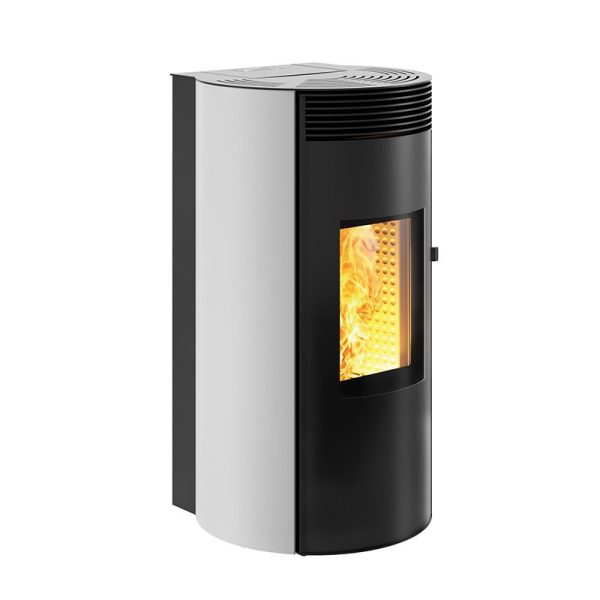

MONTEGRAPPA hermetic ducted pellet stove model MX 16 E CUMA M

Cuma M is the stove with a circular shape and contemporary lines. It fits perfectly into any environment, thanks to its modern and elegant design. The exterior door is made entirely of black painted glass. The structure and cladding are made of painted steel. The Cuma M upholstery is available in five colours: mocha, greige, white, metallic grey and black.

MX E

body size + cover: L 64 x P 64 x H 120 cm

Technical data

power

consumption

Mass

gas temperature

capacity

outlet pipe

surface

Quality class (D.M. 186 – 7/11/2017)
overall heat output (at the hearth)	15.3		Kw
Certified	5.5 – 13.5		Kw
CO measured (at 13% oxygen)	0.0187		%
Yield (η)	88.1		%
PP Primary Particulate Matter (at 13% oxygen)	14		mg/Nm3
COT (at 13% oxygen)	2		mg/Nm3
Fuel	1.23 – 3.17		kg/h
flow rate of fumes	4.7 – 8.8		g/s
Flue	119 – 189		°C
draught (vacuum at the chimney)	8		Pa
Tank	30		Kg
autonomy	24 – 9		h
Smoke	Ø 80		Mm
air inlet for combustion	Ø 60		Mm
Heatable	155		*sqm
net weight	124		Kg
Weight with packaging	135		Kg
* with the conditions shown in the General Catalogue
