MONTEGRAPPA hermetic ducted pellet stove model MX 16 E NOIR M

Description

MONTEGRAPPA hermetic ducted pellet stove model MX 16 E NOIR M

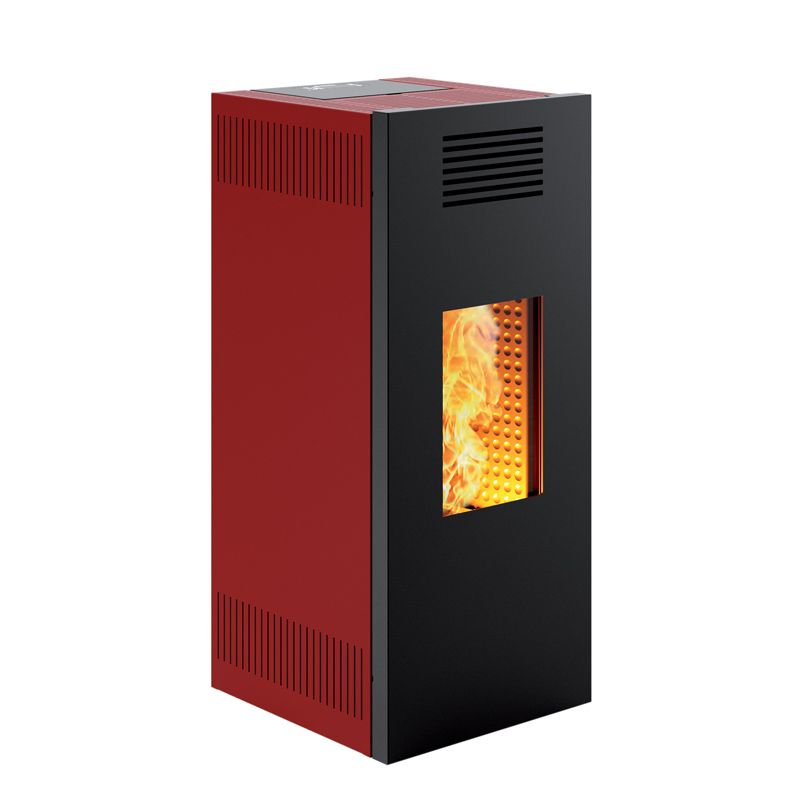

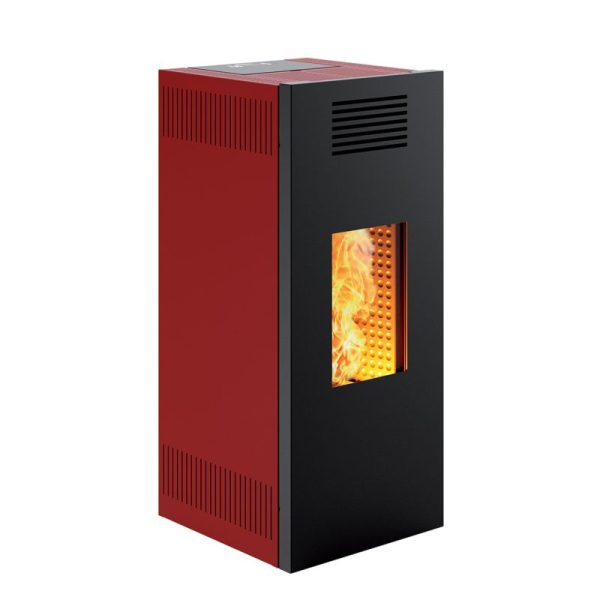

The clear lines and ultra-minimal design distinguish Noir M. The structure and cladding are both made of painted steel, with a large glass that emphasizes the flame. The combustion chamber is decorated with an elegant pattern. The Noir M upholstery is available in four colours: mocha, greige, red and black.

MX E

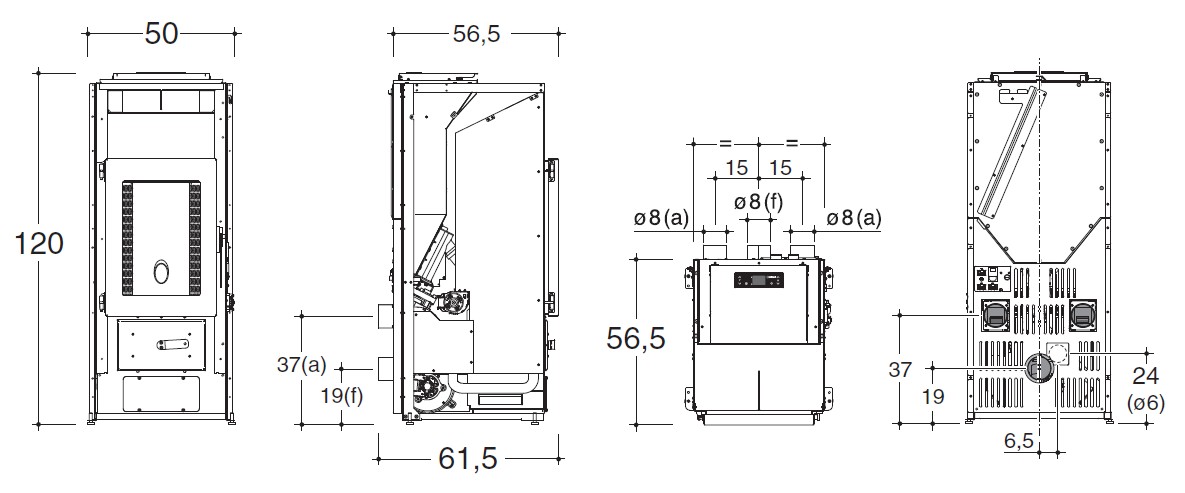

body size + cover: L 52 x P 58 x H 120 cm

power

consumption

Mass

gas temperature

capacity

outlet pipe

surface

Quality class (D.M. 186 – 7/11/2017)
overall heat output (at the hearth)	15.3		Kw
Certified	5.5 – 13.5		Kw
CO measured (at 13% oxygen)	0.0187		%
Yield (η)	88.1		%
PP Primary Particulate Matter (at 13% oxygen)	14		mg/Nm3
COT (at 13% oxygen)	2		mg/Nm3
Fuel	1.23 – 3.17		kg/h
flow rate of fumes	4.7 – 8.8		g/s
Flue	119 – 189		°C
draught (vacuum at the chimney)	8		Pa
Tank	30		Kg
autonomy	24 – 9		h
Smoke	Ø 80		Mm
air inlet for combustion	Ø 60		Mm
Heatable	155		*sqm
net weight	124		Kg
Weight with packaging	135		Kg
* with the conditions shown in the General Catalogue
