Description
MONTEGRAPPA wood-burning insert model FC80VT 15.3 kW
Wood-burning insert with a horizontal rectangular shape made entirely of cast iron. The anthracite gray frame, with raw angles and 45° cuts, emphasizes the view of the flame. Opening with swing door.
FC80VT

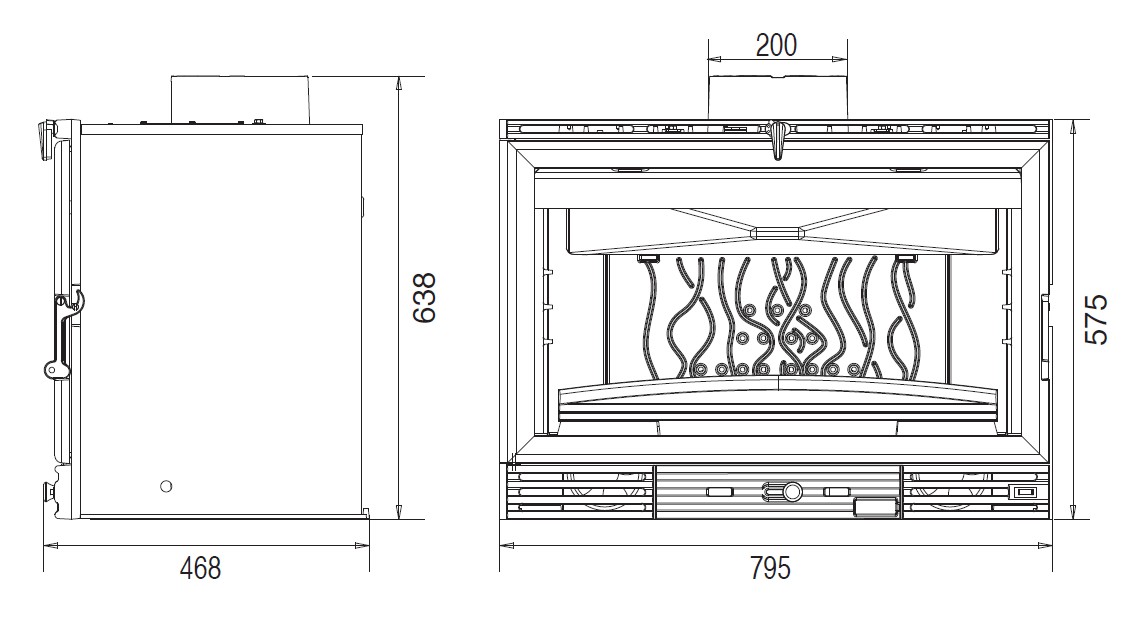

dimensions: L 80 x P 47 x H 58 cm


Technical data
![]() |
|||
FC80VT | |||
Quality class (D.M. 186 – 7/11/2017) | ![]() |
||
overall heat output (at the hearth) | 15.3 | Kw | |
CO measured (at 13% oxygen) | 0.12 | % | |
yield | 75 | % | |
Fuel | 3.8 | kg/h | |
flow rate of fumes | 10.4 | g/s | |
Flue | 310 | °C | |
draught (vacuum at the chimney) | 12 | Pa | |
Smoke | Ø 200 | Mm | |
Heatable surface with certified | 138 | *sqm | |
net weight | 151 | Kg | |
* with the conditions shown in the General Catalogue |
product in possession of the requirements for achieving the “2 stars” Clean Air
