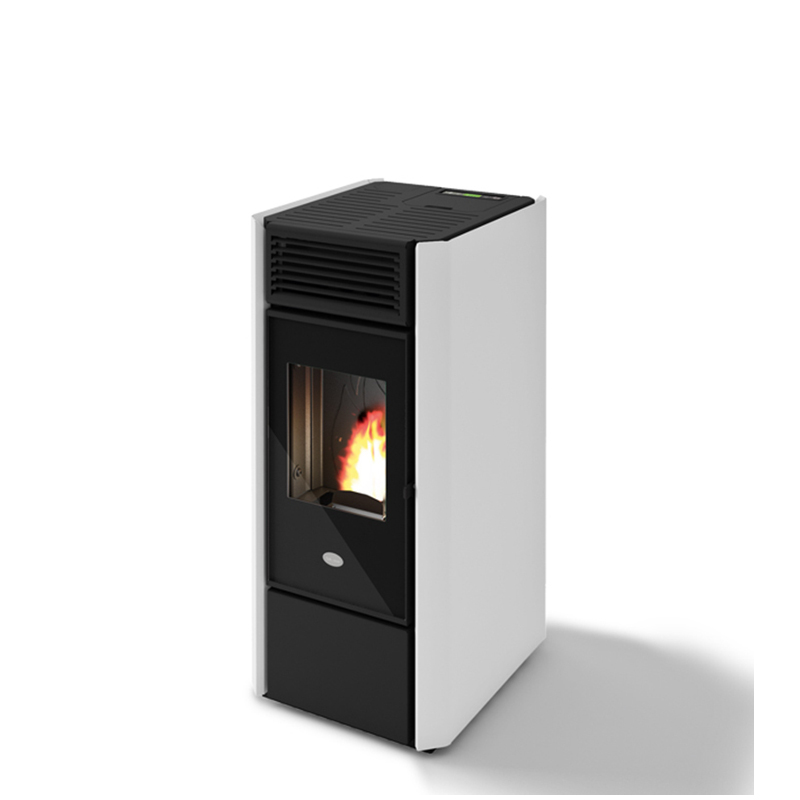

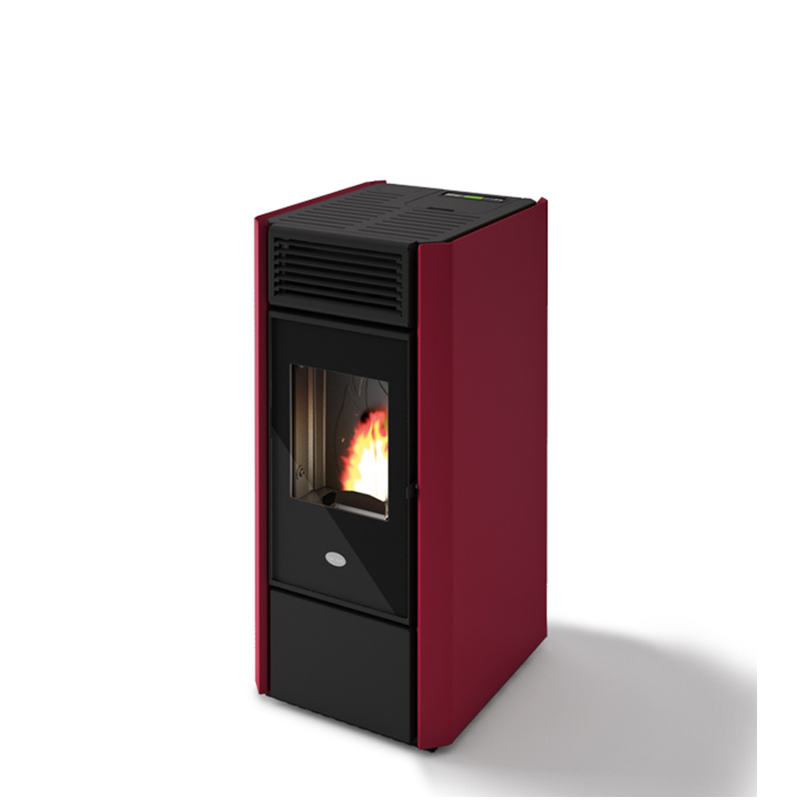

Pellet stove with forced ventilation EVA CALOR model MILLY 13.8 kW

Description

Pellet stove with forced ventilation EVA CALOR model MILLY 13.8 kW



Hand-moulded and hand-finished
steel cladding Black silk-screened
glass door front Forced
ventilation 5 operating
powers Display with 6-language
menu Cast iron
combustion chamber Uses pellets and crushed solid biomass (BMS)
Self-regulated combustion through air control (DFCS)
Removable ash drawer for ash
recovery Removable
handle Upper – rear
smoke outlet Safety thermostat
External
thermostat predisposition Safety
pressure switch Chronothermostat









CERTIFICATION

Strictly tested and certified product.



ECODESIGN 2022

This product falls under the ECO DESIGN 2022 criteria which establish ecodesign requirements, calculation and measurement methods for the purpose of reducing emissions into the atmosphere.



ENVIRONMENTAL CLASSIFICATION

This product meets the most stringent environmental regulations and has been awarded 5 stars.



THERMAL ACCOUNT 2.0

This product benefits from a contribution up to:
€ 1767,00.



BMS

The Biomass Multi-fuel System makes the stove very versatile, in fact with this system it is possible to feed the stove both with pellets and using chopped solid biomass that derives from waste such as chopped olive pits, hazelnut shells and shredded almonds.



DFCS

The Dynamic Flow Control System is the automatic control of the combustion air, with this system the management of the stove air self-adjusts according to the different types of installation or the different qualities of fuel to always give maximum versatility in everyday use and optimize consumption.



SHU

The SHU symbol indicates that the stove is equipped with a removable handle. A safety precaution to prevent accidental and/or unintentional opening of the fire door.



WI-FI MODULE (OPTIONAL)

Remote control module, which can also be installed after purchase.









SPECIFICATIONS

Power burned: max 13.8 kW – min 5.3 kW Power output in heating: max 12.5 kW – min 5.0 kW

Energy efficiency class: A+
Efficiency: Pmax 90.0% – Pmin 94.5% CO value with 13% O2 (%): Pmax 0.018% – Pmin 0.024% Pellet hourly consumption: max 3.0 kg/h – min 1.1 kg/h Tank capacity: 15 kg Heatable room size: 200 – 300 mc

Minimum distances to flammable walls: side: 30 cm – back: 20 cm – front: 100 cm
Power supply voltage/Freq.: 230V – 50 Hz
Rated electrical power: 320 W
Measurements: L 46.6 x D 55.5 x H 99.9 cm Weight: 110 kg Cast iron chamber

Stainless steel bowl
Complies with standards: EN14785 – BImSchV II – 15a B-VG – LRV/VKF
Ash drawer: Removable for ash recovery
Smoke Outlet: Upper / Rear
Remote control: Optional
WI-FI module for remote control: Optional
Protective footboard: Optional
