TIEMME TC 110-24B-59 control unit for CLAM wood-burning inserts (Rif.Int. 0034)

Description

DESCRIPTION:

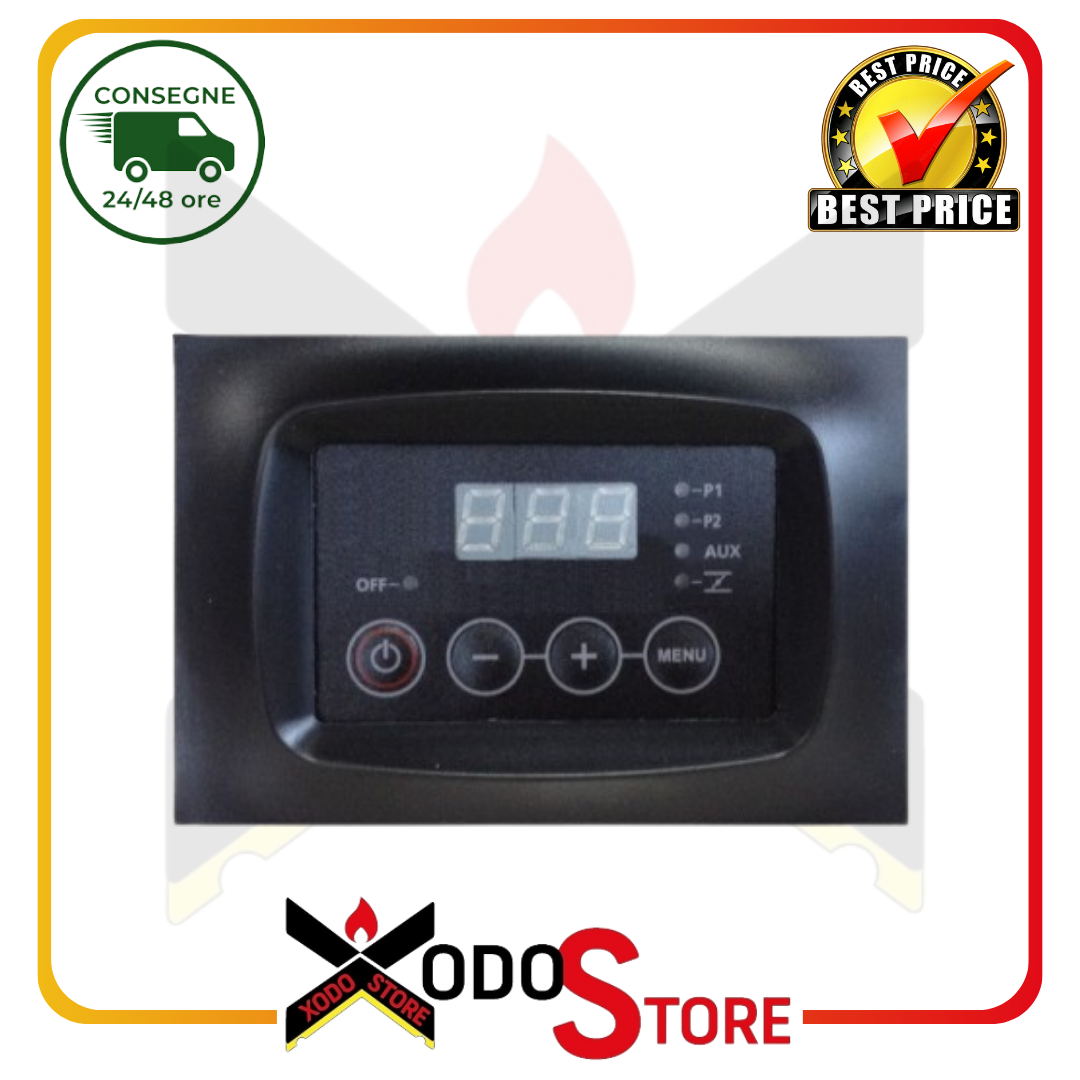

TIEMME TC 110-24B-59 control unit for IDRO wood-burning inserts – Recessed type – 7-segment LED display – 4 function keys – Temperature sensor: NTC 10K – Outputs: relay output – Power supply voltage: 230 Vac The TIEMME TC 110-24B-59 control unit is specific for wood-burning inserts and hydro fireplace boilers, consisting of a power board and a 7-segment 3-digit LED display board through which it is possible to view the various stove functions on, off or in standby, temperature can be set in degrees of alarms and function tests. Using the 4 buttons on the board it is possible to turn the control unit on or off, select the type of operation (automatic or manual). Very small in size, suitable for being recessed into the wall in a 3-module box, it is supplied with an external plastic frame. It has two inputs for 10 Kohm NTC probe and flow switch contact. The Electronic Control Unit can be installed in place of the Control Panel of the Electronic Board mod. 005 – 005/B CODE 05020048 + 05020047 on CLAM models – Termofavilla all series – Termofavilla D. all series. ATTENTION! Carefully follow the wiring diagram and reset the parameters as stated in the manual

For stoves:

CLAM ref. 05021510 Mod: Calorvision Idro – Thermosparkle T/75 PRO – Thermosparkle T/85 PRO – Thermosparkle T/75 PRO R DX – Thermosparkle T/75 PRO R SX – Thermosparkle T/85 PRO R DX – Thermosparkle T/85 PRO R SX – Thermosparkle T/75 PRO RS DX – Thermosparkle T/75 PRO RS SX – Thermosparkle T/85 PRO RS DX – Thermosparkle T/85 PRO RS SX

CLAM ref. 05012010 Mod: Rioverde
