Ventilated wood stove MONTEGRAPPA LH 11 V EVOCA XW

Description

Ventilated wood stove MONTEGRAPPA LH 11 V EVOCA XW

wood-fired with ventilated hot air

Round shape and refined design, Evoca easily adapts to both classic and more modern environments. The sides, top and plinth are covered in majolica. The sides are engraved with an elegant oval pattern. The splay emphasizes the silk-screened glass and the wide view of the fire. Evoca XW has a steel structure and majolica cladding, and is available in three colours: glossy white, cream, glossy burgundy.

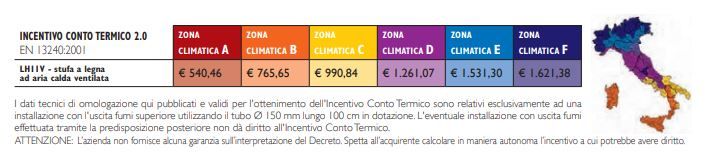

Pleasant aesthetics Optimization of overall space Longer life, guaranteed by the use of cast iron Reduction of wood consumption for greater savings Reduction of polluting emissions Minimal and easy maintenance: cleaning the stove is simple and fast Fan adjustment Certified to obtain the benefits of tax deductions

LH11V

body size + cover: L 66 x P 60 x H 109 cm

Technical data

power

USD

consumption

Mass

gas temperature

outlet pipe

height

power

	LH11V
Quality class (D.M. 186 – 7/11/2017)
Certified	11.0		Kw
CO measured (at 13% oxygen)	0.076		%
yield	85.1		%
Fuel	2.67		kg/h
flow rate of fumes	8.3		g/s
Flue	199		°C
draught (vacuum at the chimney)	10		Pa
Smoke	Ø 150		Mm
Min. flue	3		m
Heatable surface with certified	108		*sqm
net weight	127		Kg
Weight with packaging	139		Kg
* with the conditions shown in the General Catalogue

product in possession of the requirements for achieving the “4 stars” Clean Air
