Name: Wood-burning boiler stove MONTEGRAPPA MLW22V with BOMA M coating
Price: 3069.00 EUR
Availability: InStock

Description

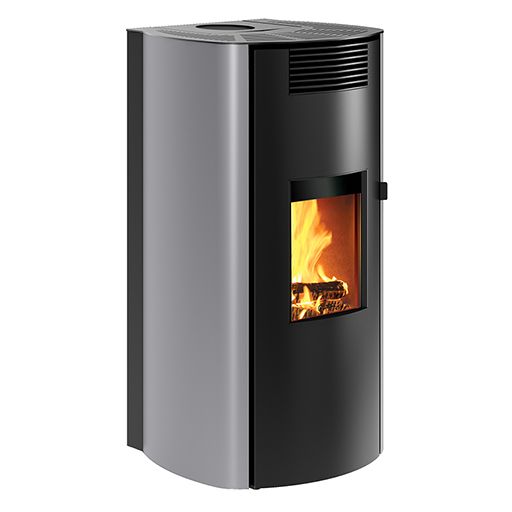

Wood-burning boiler stove MONTEGRAPPA MLW22V with BOMA M coating

The clear lines and ultra-minimal design distinguish the MLW22V BOMA M. The cladding and structure are in painted steel with a rounded door. Boma M is available in four colors: red, metallic gray, black and bronze.

Painted sheet steel structure.

Deep combustion chamber to ensure optimal combustion.

Door with large ceramic glass for a complete view of the fire.

Combustion air registers for more accurate combustion management.

Secondary air inlet ducts for post-combustion and for the self-cleaning system of ceramic glass.

Cast iron ash fall grate for maximum strength and durability.

Large removable ash drawer for maximum ease of use.

Thermostatic probe for automatic fan start.

Ambient air fan.

Boiler.

Safety exchanger.

Practical water connections.

Non-slip adjustable feet for proper leveling.

MLW22V BOMA M

body dimensions + cover: L 63 x P 65 x H 120 cm

Marking of compliance with European standards

European reference standard for wood-burning stoves

European Directive for biomass domestic appliances: stoves, fireplaces and cookers (EU Regulation 2015/1185)

Technical data

power

consumption

Mass

gas temperature

outlet pipe

power

Quality class (D.M. 186 – 7/11/2017)
overall heat output (at the hearth)	15.4	Kw
Certified	13.5	Kw
Power rendered to the environment	3.4	Kw
Power rendered to water	10.1	Kw
CO measured (at 13% oxygen)	0.0422	%
Yield (η)	87.6	%
Primary Particulate Matter (PP) at 13% oxygen	14	mg/Nm3
COT (at 13% oxygen)	27	mg/Nm3
Fuel	3.5	kg/h
flow rate of fumes	9.5	g/s
Flue	188	°C
draught (vacuum at the chimney)	16	Pa
Smoke	Ø 150	Mm
air inlet for combustion	Ø 80	Mm
Heatable surface with certified	156	*sqm
net weight	173	Kg
Weight with packaging	186	Kg
dimensions	W 50 x D 59 x H 120	Cm
* with the conditions shown in the General Catalogue
