MONTEGRAPPA wood-burning fireplace model CM P05 14.3 kW

Description

MONTEGRAPPA wood-burning fireplace model CM P05 14.3 kW

NATURAL CONVENTION VERSION RIGHT IN IMMEDIATE AVAILABILITY

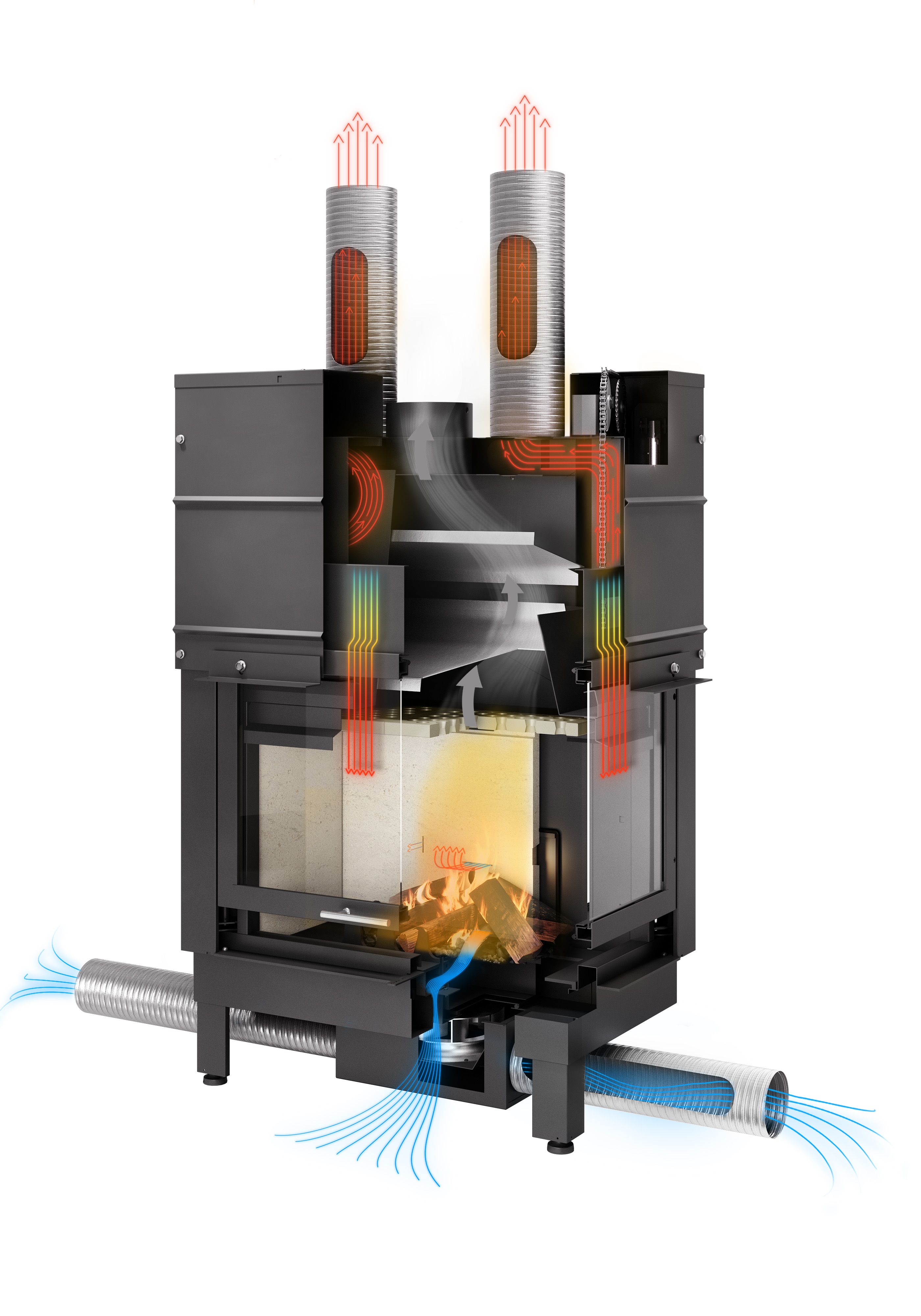

Wood-burning fireplace with a view of the fire on two sides without interruption, thanks to the ceramic glass in a single shaped sheet. It stands out for its corner door with painted steel edge, which can be opened up and down with a stainless steel handle; Door opening for cleaning. Combustion chamber complete with Catalyst-Flame Breaker coated in CMtech®2, ceramic refractory, with cast iron fire surface. Ventilated hot air or natural convection versions are available.

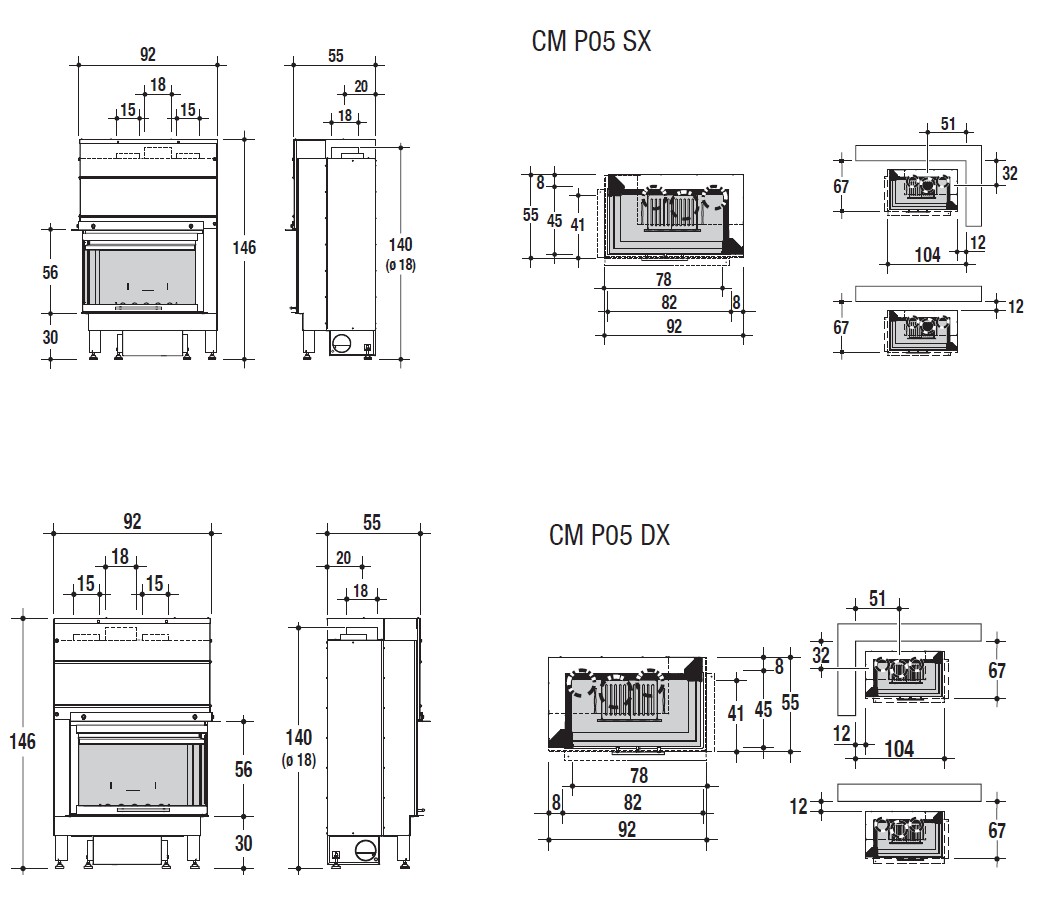

CM P05

Technical data

Natural

USD

power

USD

USD

USD

consumption

Mass

USD

gas temperature

outlet pipe

height

air

power

CMP 05N		CMP 05V
	Convection		ventilated
Quality class (D.M. 186 – 7/11/2017)
overall heat output (at the hearth)	14.3		12.9	Kw
Certified	11.0		11.0	Kw
CO measured (at 13% oxygen)	0.052		0.052	%
Yield (η)	77.0		85.4	%
Primary Particulate Matter (PP) at 13% oxygen	24		24	mg/Nm3
Average fuel	2.51		2.28	kg/h
flow rate of fumes	12.7		10.1	g/s
Flue	256		188	°C
draught (vacuum at the chimney)	12		12	Pa
Smoke	Ø 180		Ø 180	Mm
internal section of the chimney	Ø 18 / 18×18		Ø 18 / 18×18	Cm
Min. flue	4		4	m
inlet ducts	2 x Ø 12		2 x Ø 12	Cm
Heatable surface with certified	128		134	*sqm
net weight	234		237	Kg
Weight with packaging	257		260	Kg
* with the conditions shown in the General Catalogue
